Description
1. Product Overview

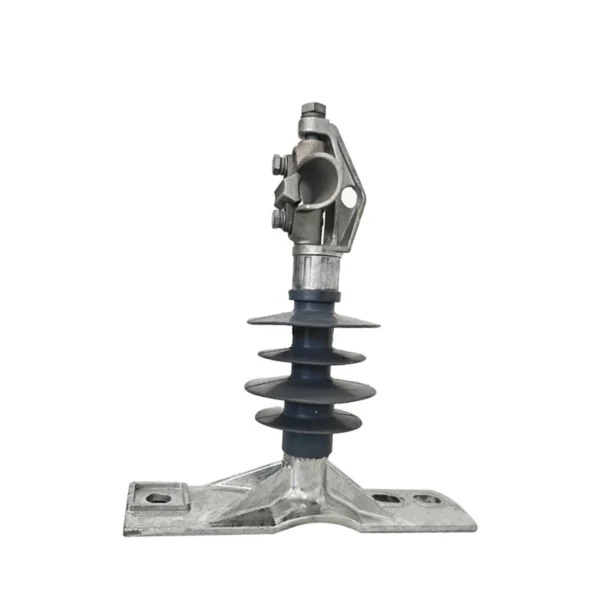

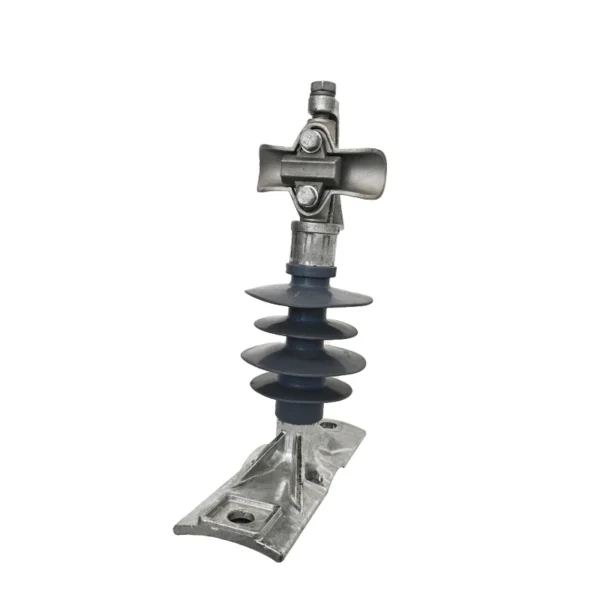

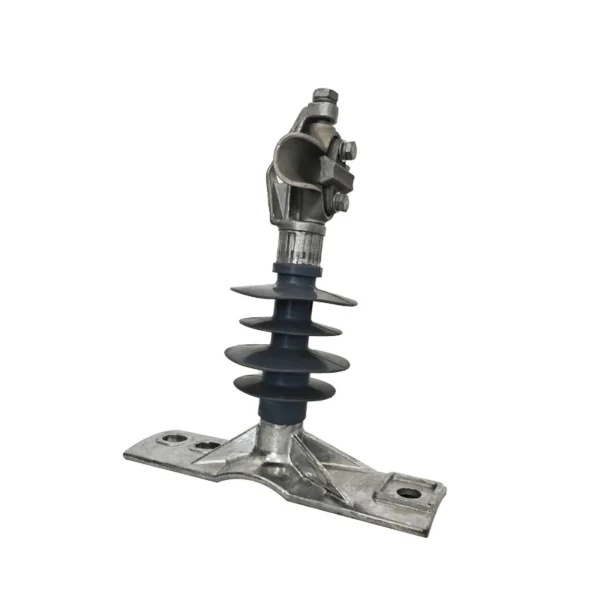

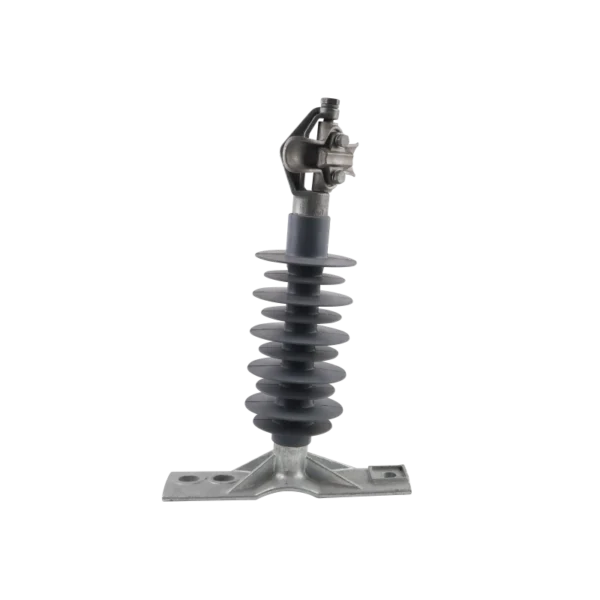

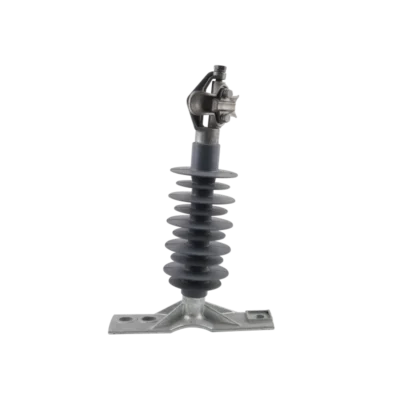

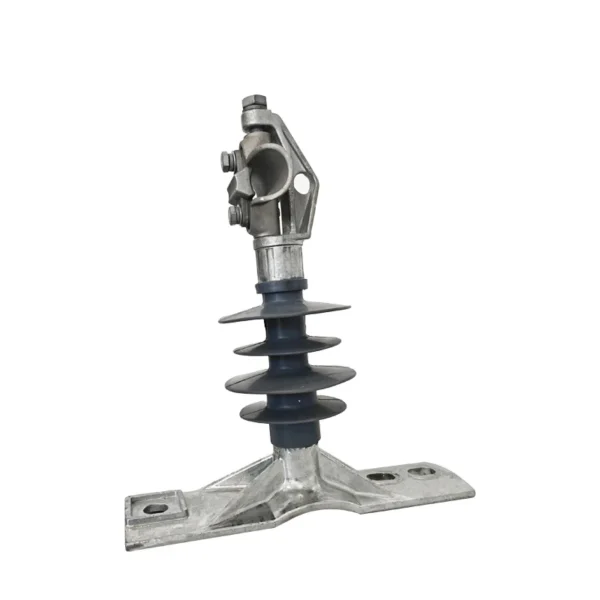

We design and make this 33kV composite post insulator under strict IEC international rules. It works well for busbars, disconnectors and high-voltage equipment inside substations.
We use strong epoxy fiberglass rods and high-temperature silicone rubber for this product. It works better than old porcelain insulators. It resists dirt, sunlight and bad weather, and you do not need to repair it often.
You can use it in outdoor substations, new energy power stations and factory power rooms for safe insulation and firm fixing.
2. Structure & Materials
- Fiberglass Core Rod
We make the core rod with epoxy glass fiber. It holds heavy weight and resists bending. It safely bears long-term pressure and sudden short-circuit force in power stations.
- HTV Silicone Rubber Sheds
We shape the silicone rubber in one whole piece. It keeps water away from the insulator surface. It fights salt rain, factory dust and strong sunlight. It stops electric leakage in wet or polluted areas.
- Hot-dip Galvanized Metal Fittings
We press metal ends tightly onto the core rod. We follow IEC mechanical safety rules during production. We offer many base styles such as L-type and flange bases. They fit most common installation positions in substations.
3. Core Advantages
- Strong anti-pollution insulation ability
Water cannot form a continuous conductive layer on the rubber surface in foggy or dusty days. You clean the substation much less often.
- Light weight and hard to break
It weighs 50% less than traditional porcelain insulators. It never breaks during transport or installation. You cut your loss and avoid safety risks on site.
- Many installation choices
You can mount one single insulator or two insulators side by side. Our different metal bases match bus frames and indoor high-voltage cabinets easily.
- Works well in most environments
It runs safely from -40℃ to +70℃. You can use it near the sea, in mining areas or on high, windy plateaus.
- Meets IEC rules for global export
We finish all standard safety tests. We provide official test reports. It passes the inspection of most overseas power project bids.
- Long service life with little maintenance
It works safely for up to 25 years outdoors. You do not need to paint anti-dirt material or clean it regularly. You save much later operation cost.
4. Typical Application Scenarios
- Fix and insulate 33kV busbars and disconnectors in outdoor substations
- Use it in solar and wind power booster stations
- Apply it in factory power plants and mining high-voltage distribution rooms
- Support power infrastructure projects in Africa, Southeast Asia and other overseas regions
- Install inside 33kV high-voltage switch cabinets and ring main units

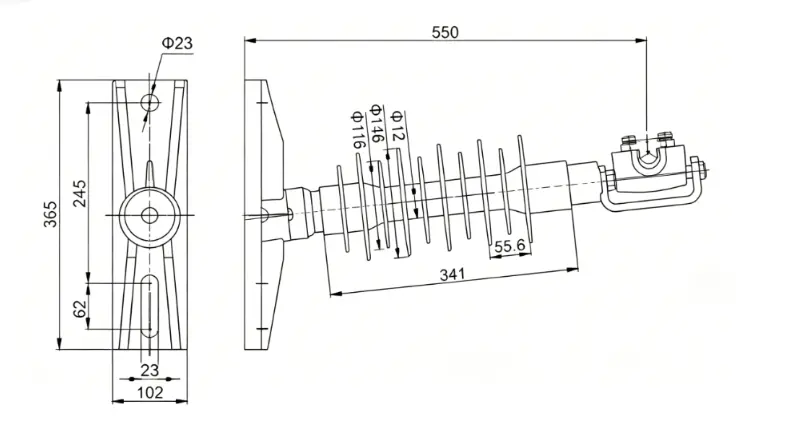

5. Technical Specifications
| Nominal System Voltage | Frequency | Cantilever Strength | Min. Creepage Distance | Standard |
|---|---|---|---|---|
| 33KV | 50/60Hz | 10KN | 1120mm | IEC61952 |
