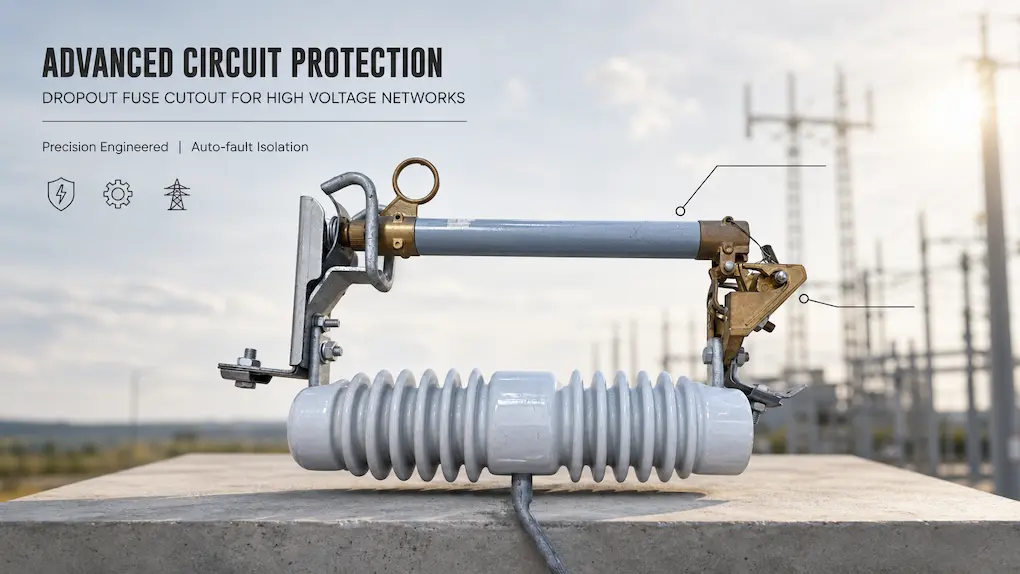

Drop out Fuse Cutout

Preface

Drop-out fuse cutouts are key outdoor high-voltage protectors for modern medium-voltage power grids. Workers fix them on utility poles and power stations. They guard distribution transformers and overhead lines from short circuits and overcurrent damage. These devices work steadily at low upkeep costs, so power firms use them worldwide. Manufacturers make two main types: standard cutouts and load-break cutouts. Installers fit both at line inlets. Standard units only stop fault currents. Load-break types cut short-circuit power and manually switch normal load current. This guide covers definition, structure, working rules, types, uses, pros & cons, selection rules, installation, maintenance and common troubles.

1. Definition and Full Structure

1.1 Definition

Drop-out cutouts work for 10kV～36kV outdoor power lines. They hold insulated supports, fuse tubes, fuse links and contact sets. Fault current melts the inner fuse link. The empty tube drops down by its own weight and leaves a clear open gap. People name it “drop-out” from this design.

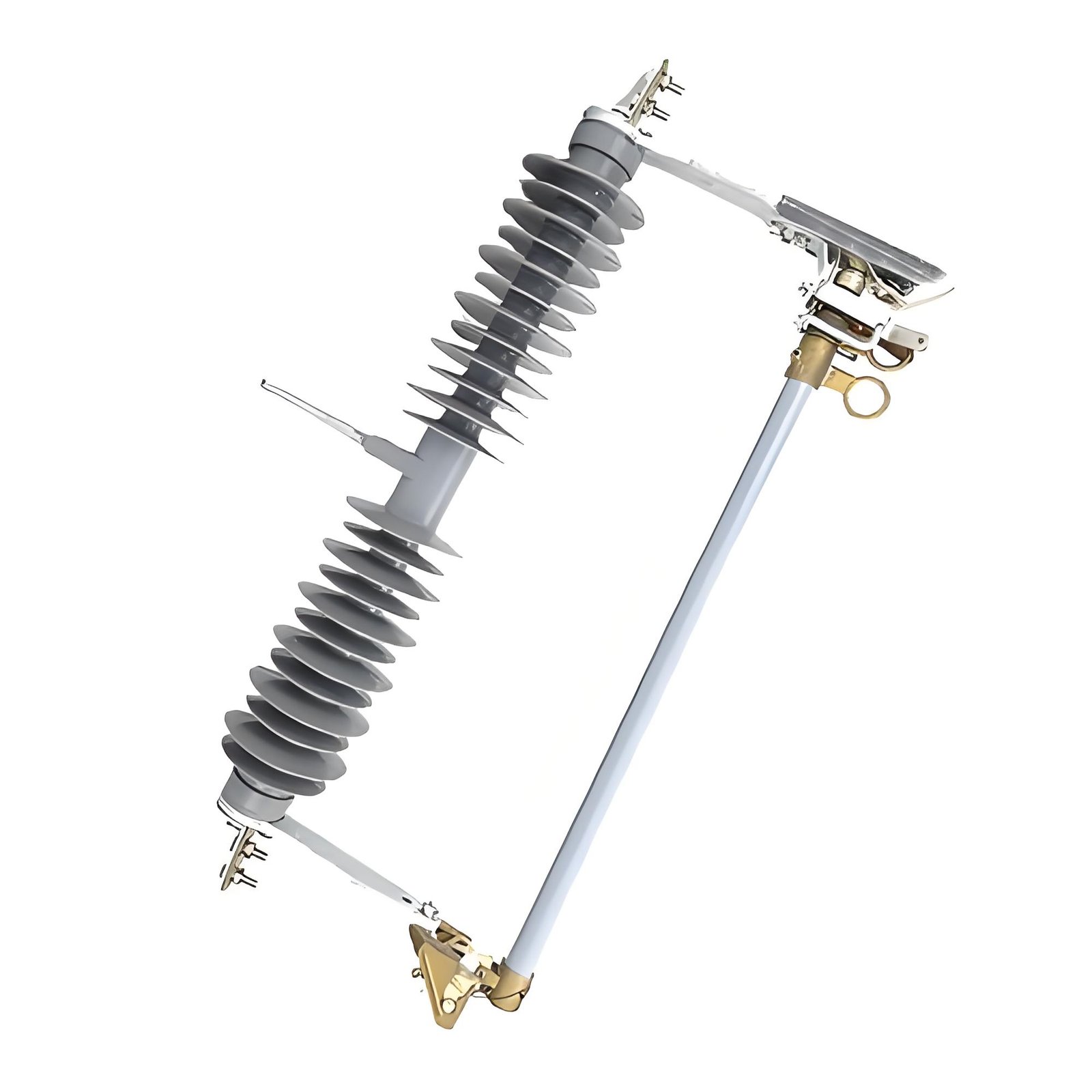

1.2 Five Core Parts

1. Fuse Link: The key current-carrying part made of special metal. Excess heat melts the link and cuts broken circuits.
2. Fuse Tube Shell: Insulated outer tube made of phenolic paper or epoxy fiberglass. Inner arc-quenching liner makes cooling gas to put out electric arcs during faults. The shell resists sun and rain for outdoor use.
3. Insulator Post: Fixes the whole unit and blocks high voltage. Users pick porcelain or silicone rubber types against dirt and sharp temperature changes.
4. Moving & Fixed Contacts: Fixed contacts stay on insulator posts. Moving contacts attach to tube ends and connect power circuits. Load-break models add extra side contacts and independent arc chambers for on-load switching.
5. Trip Mechanism & Terminals: Spring or link-release trip unlocks tubes after fuse melt-down. Bolt-type terminals lock wires tight for stable power flow. Some units carry fault tags to show broken spots after tube drop.

2. Working Principles

2.1 Standard Cutout for Fault Breaking

Normal current flows safely through tight fuse links and closed contacts. Short-circuit or overload spikes heat and melt links quickly. Inner liner releases large cooling gas to blow out arcs inside tubes. Lost tension unlocks trip parts, and the empty tube falls down to fully cut faulty power and protect downstream equipment.

2.2 Load-Break Cutout for Live-Line Switch

Extra side contacts and sealed arc chambers help users switch live power with insulated pull sticks. Main contacts separate first while side contacts keep short power flow. Further pull opens side contacts and makes arcs. Chamber gas cools arcs until AC current crosses zero and fully stops power safely.

3. Four Main Product Types

1. Porcelain Standard Cutout: Durable cheap porcelain insulator for regular rural and city pole transformer protection.
2. Silicone Rubber Composite Cutout: Light, dirt-proof and weather-resistant rubber parts fit coastal, dirty or extreme-temperature sites.
3. Load-Break Cutout: Built-in arc chamber and side contacts support auto fault drop and manual live switching for often-switched branch lines and transformers.
4. Pad-Mounted & Type R/J Cutouts: Pad-mounted units sit inside metal boxes on concrete ground for buried community power. Type R protects big high-voltage gear inside switch cabinets. Type J guards small motors and low-voltage distribution equipment.

4. Wide Application Scenarios

1. Transformer Protection: Standard inlet gear for pole-top transformers to cut fault reverse current instantly.
2. Overhead Line Section Protection: Split long power lines into sections and limit blackout range after local faults.
3. Capacitor Bank Protection: Guards outdoor reactive power compensation capacitor sets against short and overload damage.
4. Rural & Town Grid: Low-cost choice for long-distance countryside overhead power wires.
5. Other Fields: Factory power, residential branch cables, drive motors, outdoor lighting, park distribution, farm machine control and UPS overcurrent protection.

5. Advantages & Weak Points

Advantages

1. Solid all-mechanical structure with few parts works well in wet, dusty, hot or cold conditions.
2. Visible dropped tubes let workers find fault spots fast for quick repairs.
3. Users only replace blown fuse links and reuse base & tube shells to cut downtime.
4. Low buying and installation cost beats circuit breakers for budget-friendly mid-low voltage grid projects.

Disadvantages

1. It cannot handle extra-large short-circuit current as well as circuit breakers.
2. Fuse needs heating time to melt; serious sudden faults may slightly damage nearby gear.
3. It fails to catch tiny hidden earth leakage and allows slow line aging.
4. Teams need regular site inspection and maintenance.

6. Four Core Selection Rules

1. Rated Voltage: Match device voltage with local grid voltage and meet creepage & withstand voltage standards.
2. Rated Current: Set fuse rating equal to normal long-time working current of protected equipment.
3. Breaking Current: Choose cutout breaking capacity higher than the site’s maximum possible short-circuit current.
4. Working Environment: Pick composite rubber insulated products for dirty, humid or strong-sunshine regions.

Product Selection Table

Product Parameters – HRW Series Drop-out Fuse Cutouts

RW Series Export Type Drop-out Fuse Cutouts

10KV–15KV

15KV–27KV

27KV–33KV

7. Standard Installation & Acceptance Rules

Seven Installation Steps

1. Cut upstream power and finish safety checks to avoid electric shock.
2. Choose dry, easy-to-repair positions with safe phase spacing.
3. Fasten the unit firmly on pole cross-arms with hoops and bolts without shake.
4. Tight all inlet and outlet wire terminals for good electric contact.
5. Install fuse links properly and adjust contact tightness.
6. Double-check base fixing, wiring, tube fitting and trip parts.
7. Switch on power and test drop action with simulated faults when needed.

Four Acceptance Checks

① Moving & fixed contacts fit tightly; ② Insulated base stays fixed; ③ All wire terminals lock securely; ④ Fuse links hold proper tightness.

Note: Licensed electricians follow factory manuals for all high-voltage installation work.

8. Routine Maintenance Rules

These cutouts need little daily care but require regular inspection:

1. Clean dirt and check cracks on insulator surfaces.
2. Remove rust and fix worn or deformed contacts.
3. Swap damp or cracked damaged fuse tubes for new ones.
4. Manually test tube drop movement to guarantee reliable tripping during real faults.

9. FAQ

1. Can users reuse cutouts?Bases and outer tubes stay reusable; install new fuse links after each blowout.
2. May standard cutouts switch live load?Never use regular types for live switching; select load-break models for on-load operation.
3. Common applicable voltage?Main sizes fit 10kV,15kV,24kV,33kV power grids.
4. Service life?Qualified units run many years outdoors with correct selection and regular maintenance.

Conclusion

Drop-out fuse cutouts deliver clear fault signs, reliable isolation and low total cost, so they remain essential medium-voltage grid protection gear. Power engineers mix porcelain/composite, standard/load-break types to cover most urban and rural power protection needs. Correct parameter selection, standard mounting and periodic maintenance keep transformers and cables safe against overload and short-circuit faults long-term.
