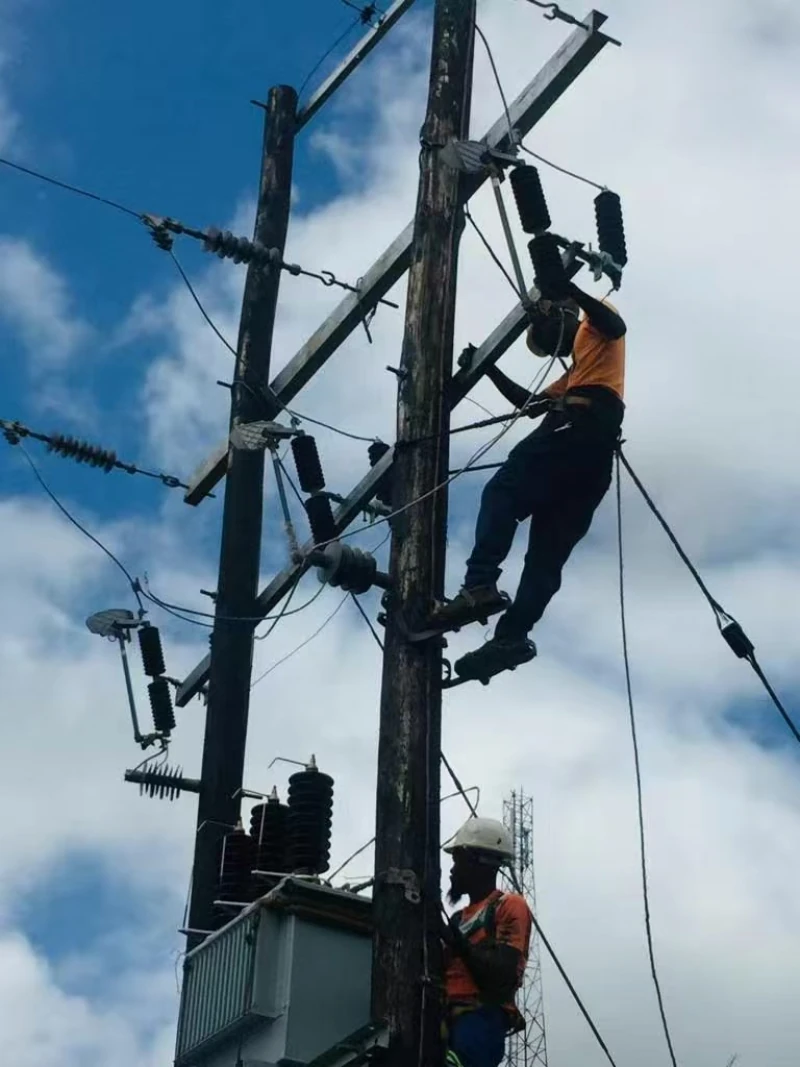

composite suspension insulator

This composite suspension insulator features lightweight structure and strong bending resistance, ideal for high voltage overhead power transmission projects in coastal, industrial and heavily polluted areas.

composite suspension insulator

Product Advantages

  1. Excellent electrical performance, great anti-pollution capacity, free of regular cleaning
  2. High mechanical strength, shockproof, anti-vibration and explosion-proof
  3. Lightweight and compact, convenient for transport and installation
  4. Good hydrophobicity, aging, corrosion and low temperature resistance
  5. Reliable integrated structure, interchangeable with porcelain insulators
  6. Low daily maintenance cost, wide application range

Showing all 4 results

FAQ
Common questions & answers about composite suspension insulator

Its silicone skirt delivers strong hydrophobicity, pollution flashover resistance is 2–2.5 times porcelain insulators, no routine cleaning needed.

Epoxy glass fiber core rod owns ultra-high bending strength; it is anti-impact, anti-vibration and explosion-proof.

Absolutely. It is merely 1/6~1/9 the weight of porcelain suspension insulators, lightweight for transport and mounting.

The whole unit adapts to -40℃ to +50℃, with TMA4.5 leakage tracking, good anti-aging and anti-corrosion performance.

Yes. Adopted precise crimping process without core rod damage, fully interchangeable with porcelain and glass suspension insulators.

Contact Form Demo

Product Structure

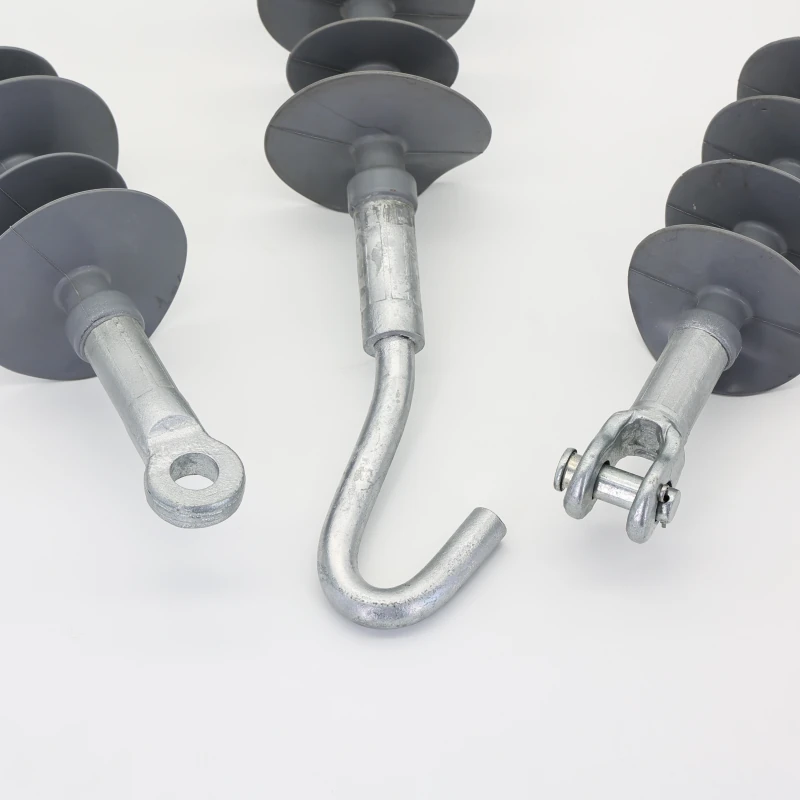

This series of products consists of three parts: glass fiber epoxy resin pull rods, silicone rubber umbrella skirts, and hardware. The silicone rubber umbrella skirts are made by an integrated injection molding process, which solves the key problem affecting the reliability of composite insulators – interface electrical breakdown. The connection between the glass pull rods and the hardware adopts the most advanced crimping process, equipped with a fully automatic ultrasonic flaw detection system. It features high strength, attractive appearance, small size, light weight, and the hardware is galvanized to prevent rust. It can be used interchangeably with porcelain insulators. This product has a reliable structure, does not damage the core rod, and can fully exert its mechanical strength.

Product Property

  • It has superior electrical performance and high mechanical strength. The internal load-bearing bad oxygen glass fiber pull rod has a bending strength twice that of ordinary steel and 8 to 10 times that of high-strength porcelain insulators, effectively enhancing the reliability of safe operation.
  • It has good anti-pollution performance and strong anti-pollution flashover capability. Its wet withstand voltage and pollution withstand voltage are 2 to 2.5 times that of porcelain insulators with the same creepage distance, and it does not require cleaning, allowing it to operate safely in heavily polluted areas.
  • It is small in size and light in weight (only 1/6 to 1/9 of porcelain insulators of the same voltage level), with a lightweight structure that is convenient for transportation and installation.
  • The silicone rubber umbrella skirt has excellent hydrophobic performance. Its overall structure ensures that the internal insulation does not get damp, eliminating the need for preventive insulation monitoring tests and cleaning, reducing daily maintenance workload.
  • It has good sealing performance and strong resistance to electrical erosion. The umbrella skirt material has a leakage tracking resistance level of TMA4.5, and it has good aging resistance, corrosion resistance, and low-temperature resistance, making it suitable for use in areas ranging from -40°C to +50°C.
  • It has strong impact resistance and anti-vibration performance. Its good anti-fragility and anti-creep properties make it less prone to breakage, with high bending and torsional strength, capable of withstanding internal pressure, and having strong explosion resistance. It can be used interchangeably with porcelain and glass insulators.
  • The composite insulator series products have superior mechanical and electrical performance compared to porcelain insulators, with a large safety margin in operation, making them an updated product for power lines.



Main Technical Parameters

Item Value
Electrical ratings Rated voltage 45kV 35kV 25kV 15kV
Low frequency dry flashover voltage test 190kV 170kV 150kV 100kV
Low frequency wet flashover voltage test 170kV 140kV 115kV 70kV
Critical impulse Positive 275kV 255kV 235kV 180kV
flashover voltage test Negative 370kV 345kV 320kV 260kV
Radio influence voltage test Max.voltage test 1μ/(Max) 1μ/(Max) 1μ/(Max) 1μ/(Max)
Mechanical Failing load test 10,000kgf 10,000kgf 10,000kgf 10,000kgf
Number of sheds 10 8 6
Dimensions Section Length 630mm 540mm 449mm 352mm
Leakage distance 1100mm 886mm 674mm 445mm
Minimum arcing distance 500mm 410mm 320mm 215mm

Product Model Selection Table

Insulator Model Rated Voltage (kV) Specified Mechanical Tensile Test Load (kN) Routine Tensile Test Load (kN) Nominal Structural Height (mm) Nominal Creepage Distance (mm) 1min Power Frequency Wet Withstand Voltage (kV) Lightning Full Wave Impulse Withstand Voltage (kV)
FXBW-10/70 10 70 35 310 350 38 +75
FXBW-35/70-1 35 70 35 670 810 95 +230
FXBW-35/70-2 35 70 35 670 1015 95 +230
FXBW-66/70-1 66 70 35 870 1650 185 +410
FXBW-66/70-2 66 70 35 940 1920 185 +410
FXBW-66/120-1 66 120 60 870 1650 185 +410
FXBW-66/120-2 66 120 60 940 1920 185 +410
FXBW-110/70-1 110 70 35 1240 2520 230 +550
FXBW-110/70-2 110 70 35 1240 3150 230 +550
FXBW-110/70-3 110 120 35 1440 3520 230 +550
FXBW-110/120-1 110 120 60 1240 2520 230 +550
FXBW-110/120-2 110 120 60 1240 3150 230 +550
FXBW-110/120-3 110 120 60 1440 3520 230 +550
FXBW-220/120-1 220 120 60 2240 5040 395 +1000
FXBW-220/120-2 220 120 60 2350 6340 395 +1000
FXBW-220/120-3 220 120 60 2470 7040 395 +1000
FXBW-330/120-1 330 120 60 3350 10560 570 +1425
FXBW-500/120-1 500 120 60 4050 11000 740 +2050
FXBW-500/120-2 500 120 60 4450 14000 740 +2050
FXBW-500/120-3 500 120 60 4900
This product is particularly suitable for dirty areas, high mechanical tensile loads, large spans and compact lines. It features light weight, small volume, resistance to breakage, bending and torsion, high strength and strong explosion-proof performance.
