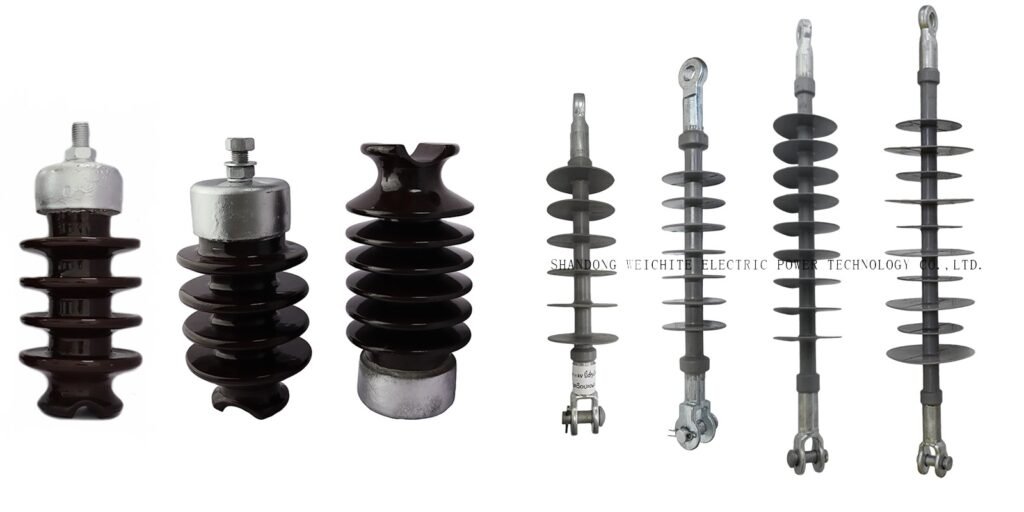

In overhead power transmission and distribution systems, insulators play a key role in separating live wires and supporting tower structures. They are basic parts that keep power grids running safely and stably. Currently, the two most widely used types of insulators in power grids are porcelain insulators and composite insulators. They differ greatly in material structure, mechanical performance, electrical characteristics, service environment, and maintenance costs. This article will fully explain their differences, advantages, disadvantages, and applicable scenarios to help power engineers, contractors, and buyers choose the most suitable insulator for power line projects. Porcelain vs. Composite Insulators bellow:
I. Overview of Core Differences about Porcelain vs. Composite Insulators
To help you quickly grasp the key differences between the two types of insulators, we clearly compare their differences in key aspects through the table below. This provides a basic reference for future selection and detailed understanding:
| Comparison Items | Porcelain Insulators | Composite Insulators |
| Material Composition | Made of clay and feldspar fired into ceramic bodies, with a glazed surface | Composite structure of glass fiber core rod + silicone rubber sheath |
| Weight and Strength | Heavy weight, brittle material, easy to break | Light weight, good toughness, not easy to break when hit |
| Design Flexibility | Fixed specifications, little room for customization | Can flexibly customize size and shape |
| Electrical Performance | Stable insulation in normal environments | Better dielectric performance, works well in high-voltage conditions |
| Corrosion and Weather Resistance | Average; easy to age and crack in harsh environments | Strong resistance to corrosion, salt spray and aging |
| Purchase Cost | Lower initial purchase price | Higher initial cost, but lower long-term overall cost |
| Maintenance Needs | Easy to get dirty, needs frequent cleaning and maintenance | Strong hydrophobicity, almost no daily maintenance needed |
II. Detailed Analysis of Performance Differences
(1) Differences in Material Structure
Material is what really causes the performance differences between these two insulators. Different material structures directly shape how they perform mechanically and electrically later on:
1. Porcelain Insulators
Porcelain insulators are the traditional type—they’ve been used in the power industry for decades. Workers make them by firing ceramic raw materials like clay, feldspar, and alumina at high temperatures. Once finished, they glaze the surface to create a smooth, dense layer that doesn’t let water or pollutants seep in. This glaze boosts the insulator’s ability to resist moisture and keep dirt from sticking. The whole thing is a single piece of hard ceramic.
2. Composite Insulators
Composite insulators have a new, all-in-one composite structure. They mainly use a glass fiber-reinforced epoxy resin core rod as the inner framework that bears the load, and then cover it with a highly weather-resistant silicone rubber sheath. This composite design lets manufacturers customize the shape and expand performance easily. They’ve also improved the material to make the electrical insulation and mechanical strength even better.
(2) Weight and Mechanical Strength
Weight and mechanical strength affect how you transport, install, and keep insulators running stably long-term—and these two types differ a lot in this regard:
1. Porcelain Insulators
They’re heavy, brittle, and not very strong when it comes to pulling or resisting impacts. It’s easy to break or crack them during transportation, on-site installation, or when outdoor lines face external vibration or load impacts. Their weight also adds extra burden to the transmission towers.
2. Composite Insulators
They’re lightweight, and the inner glass fiber core rod gives them extremely high tensile strength. The material is tough, resists impacts well, and handles line vibrations easily. This cuts down the risk of damage during transportation, high-altitude installation, and long-term use. Plus, their light weight eases the load on towers, making them perfect for building long-distance, high-voltage transmission lines.
(3) Design Flexibility
For non-standard projects and special working conditions, design flexibility decides how well insulators can adapt:
1. Porcelain Insulators
Their material makes them rigid—there’s almost no room to customize their shape or size. The industry mostly uses fixed standard specs and shapes, so they struggle to meet the custom needs of special working conditions or non-standard projects.
2. Composite Insulators
They offer a lot of design freedom. Manufacturers can adjust the insulator’s umbrella skirt structure, overall length, and shape freely based on different voltage levels, working conditions, and engineering installation requirements. This lets them customize the insulators to fit all kinds of special power project needs.
(4) Electrical Insulation Performance
Insulation performance is the core job of insulators—it lets them adapt to different voltage levels and environments:
1. Porcelain Insulators
In normal, clean environments and power grids of various voltage levels, they provide stable, reliable basic insulation. They can meet the insulation needs of most regular distribution lines.
2. Composite Insulators
The combination of the glass fiber core rod and silicone rubber outer sheath gives them better dielectric strength and a higher upper limit for insulation performance.
(5) Corrosion Resistance
The outdoor operating environment is complex, and corrosion and weather resistance directly affect the service life of insulators:
1. Porcelain Insulators
The ceramic material itself has basic chemical corrosion resistance, but when used for a long time in harsh environments such as coastal salt spray, industrial waste gas and high pollution, fine cracks will gradually appear on the glazed surface, and the insulation performance will gradually decrease with aging.
2. Composite Insulators
They have excellent overall corrosion resistance and strong adaptability in high-pollution, high-salt-spray and chemical corrosion environments. The outer silicone rubber material can resist outdoor acid-base erosion and atmospheric pollutant corrosion, provide long-term protection for the internal core rod, and have excellent outdoor aging resistance.
(6) Comprehensive Cost Consideration
Purchase cost and whole-life cycle cost are important factors for engineering selection:
1. Porcelain Insulators
They have a lower initial purchase price and are friendly to the initial budget. They are cost-effective choices for basic distribution projects with limited budget and normal clean environments.
2. Composite Insulators
Their initial purchase cost is higher than that of traditional porcelain insulators, but they have obvious advantages in the whole life cycle. They have lower light-weight installation cost, little maintenance demand and longer service life. The long-term operation cost is much lower than that of porcelain insulators, so they have higher long-term investment cost performance.
(7) Environmental Adaptability and Daily Maintenance
Environmental adaptability determines the application scope of insulators, and maintenance needs affect long-term operation costs:
1. Porcelain Insulators
In areas with heavy smog, industrial dust, coastal salt spray and freezing rain, their surfaces are easy to accumulate pollutants. After pollutants attach, the insulation performance will be damaged, which is easy to cause surface flashover and line power outages. Therefore, workers need to regularly clean and maintain them at high altitudes, which increases additional manual maintenance costs and high-altitude operation safety risks.
2. Composite Insulators
The outer silicone rubber has hydrophobic characteristics, so its surface is not easy to attach dust, salt spray and pollutants, and it is difficult to form a conductive water film, which fundamentally reduces the risk of flashover faults. The product almost does not need frequent cleaning and maintenance during outdoor operation, and is perfectly suitable for power lines in high-pollution industrial areas, coastal salt spray areas, remote mountainous areas and other places where maintenance is inconvenient.III. Application Scenarios Suitable for Porcelain Insulators
III. Application Scenarios Suitable for Porcelain Insulators
Porcelain insulators feature low cost and easy maintenance. However, they require relatively mild operating environments, such as areas with little wind and sand, and no corrosion from surrounding chemical substances. They also meet no special aesthetic requirements and can match the specifications of traditional porcelain insulators already in use. For these reasons, they are commonly applied in the following fields:
- Traditional power system renovation projects
- Urban and rural power supply systems
- Rural power construction projects
- Substation applications
- Temporary power supply projects
- Inland plain regions
IV. Detailed Application Scenarios of Composite Insulators
With the advantages of light weight, pollution and corrosion resistance, and easy customization, composite insulators are more suitable for complex working conditions and high-end power projects. The specific application scenarios are as follows:
| Scene 1 | High-voltage, ultra-high-voltage and extra-high-voltage overhead transmission lines, especially long-distance cross-regional transmission projects, which meet high-voltage needs |
| Scene 2 | Power lines in coastal salt spray areas and heavy industrial pollution areas (such as chemical parks and smelting plants), with outstanding corrosion and pollution resistance |
| Scene 3 | Transmission lines in mountainous areas, hills and other areas with complex terrain, inconvenient transportation and high maintenance difficulty, which are light and easy to install |
| Scene 4 | Supporting transmission lines for new energy power generation projects (wind power and photovoltaic), which require light weight, aging resistance and long-term stable operation |
| Scene 5 | Power lines in areas with harsh climates such as icing, heavy snow and heavy rainfall, which require impact resistance and flashover prevention to ensure line safety |
| Scene 6 | Non-standard customized power projects that need to adjust insulator size and umbrella skirt structure according to on-site working conditions |
V. Summary and Selection Suggestions
In short, porcelain insulators are classic traditional parts in the power industry. They have a stable structure and a low initial purchase price. They are suitable for conventional urban and rural distribution grids with clean environments, low voltage levels and limited budgets. They are still reliable choices when their own weight and brittleness defects are acceptable.
However, composite insulators are comprehensively leading in harsh environment adaptability, light-weight installation, flashover resistance, long-term maintenance cost and customization ability. They are light in weight, low in maintenance demand, hydrophobic and aging-resistant, making them the preferred choice for modern high-voltage transmission, new energy power grids, and projects in coastal/industrial heavy-pollution areas.
There is no absolute advantage or disadvantage between the two. The final selection depends entirely on the voltage level of your power grid project, on-site environmental conditions, mechanical load requirements, whole-cycle cost budget and actual engineering needs.
